Custom ECS engine -- ECS C++

▚ Project summary:

---

▚ Gameplay UML

---

Antreas and I decided, to prepare ourself as much as possible as we needed to prepare our gameplay structure. The most important decision we made upfront: the structure we wanted to make, would be a cleanly written/working tower defense structure that would be easily expandable to fit our base concept, when needed.

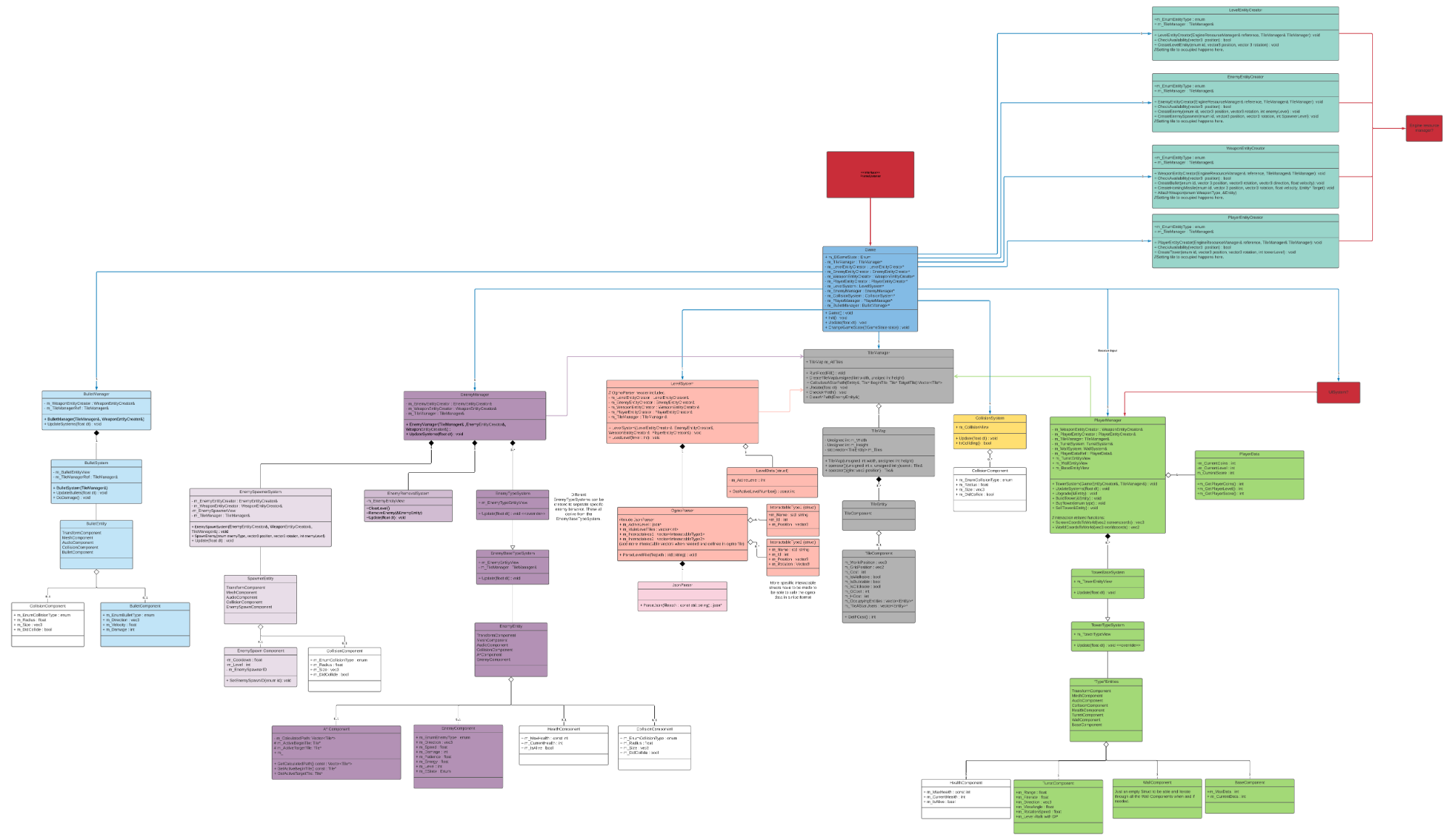

In the class diagram diagram, we first made a rough version of the classes we planned out to use this block.
This was a new challenge, because making a class diagram diagram for an ECS game was something I have never done before.
Link to full class diagram

---

▚ Ogmo level setup

---

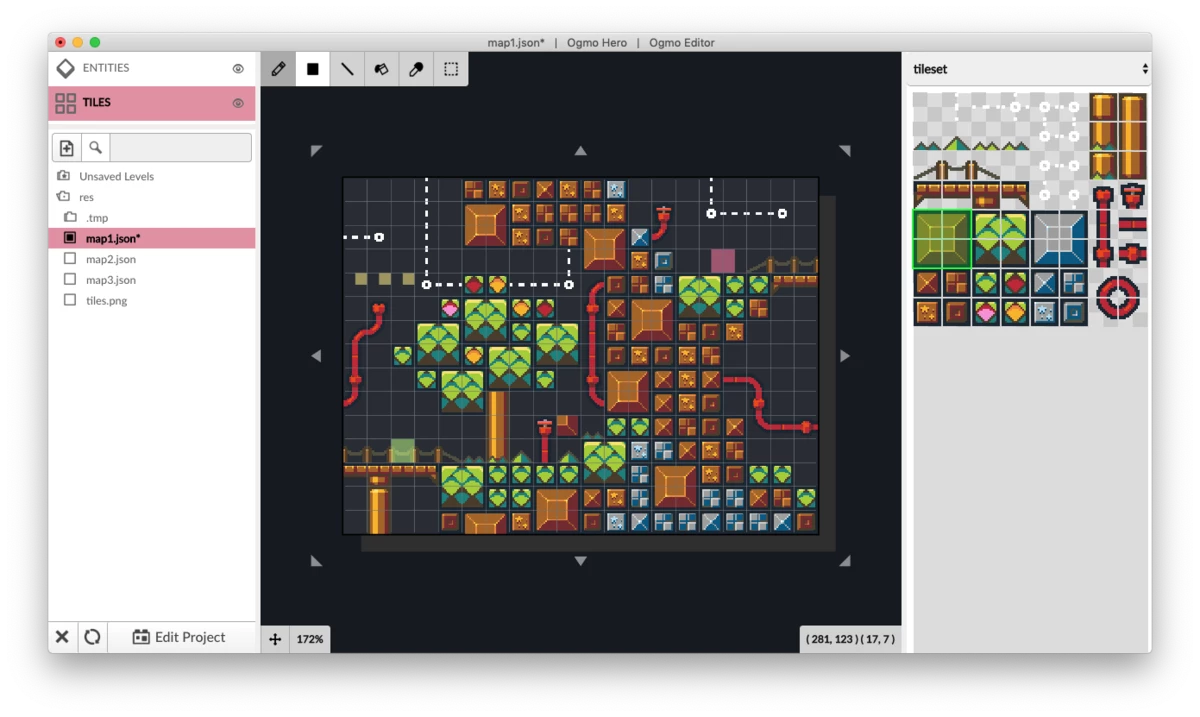

To create our levels, I developed a work flow where we define our level structure and entity/interactable inside the free to use 2D map editor, OGMO.

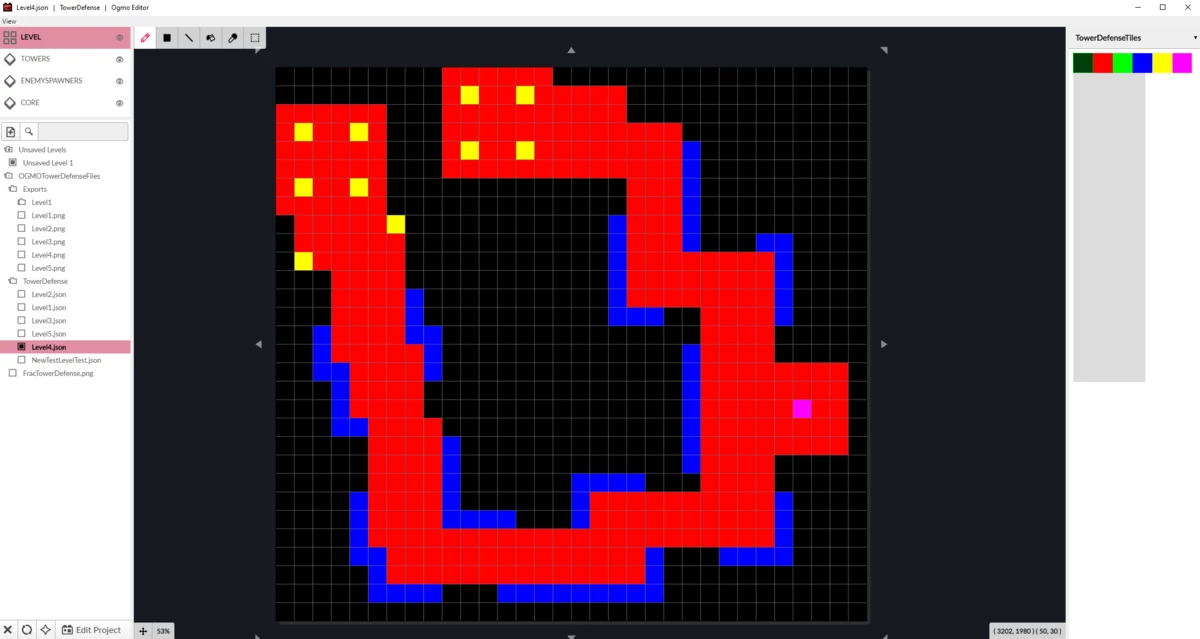

We created maps, where colors indicate different aspects/details of tiles.
In our levels, the following colors indicate specific tiles. This data is stored in Json files, and used in both the model generation and level setup in engine.

Using OGMO, we were able to create multiple levels, easily tweak levels, tweak the Json data, update the procedural generated models, but most importantly, improve the feel and playability of our game after reaching the polishing stage.

---

▚ Ogmo to Houdini workflow

---

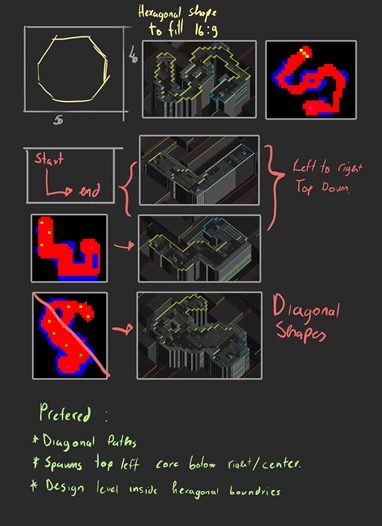

I worked together with Niels Voskens, who is a really talented Visual Artist when it comes to procedural generating meshes/levels, to generate a custom mesh from the exported Ogmo level data.
After researching and testing, we settled on a workflow where the Ogmo level images, are used as input in a custom tool, made in Houdini.
The tool uses every pixel position as coordinates and the pixel color as indication on what section of the level/ detail of the level should be generated.

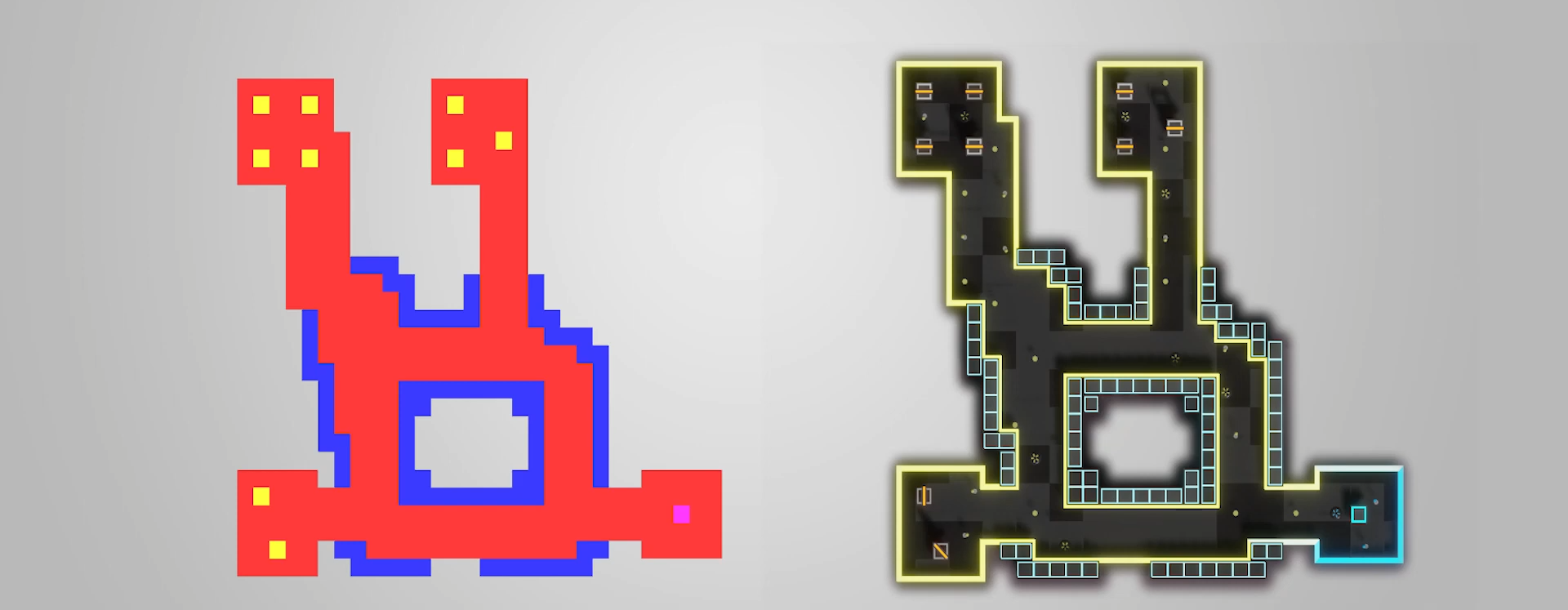

Exported images are directly used in Houdini, to create accurate and fully working level meshes.

Something I really liked, is that we separated the core functionality of the full tower defense game, from the assets of the levels.
Levels are fully working/testable, without having any meshes. The level Json data is used from the exported Ogmo files, on which a custom generated level grid is generated separately from the level mesh.
I will talk more about this in the later sections of this page.

More about the amazing level generation workflow in Houdini, from Niels Voskens, can be found here.

---

▚ Pre loading level data

---

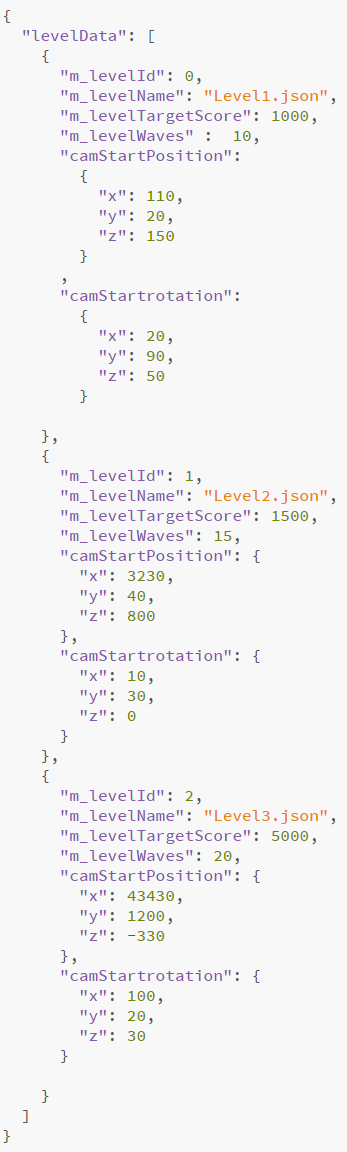

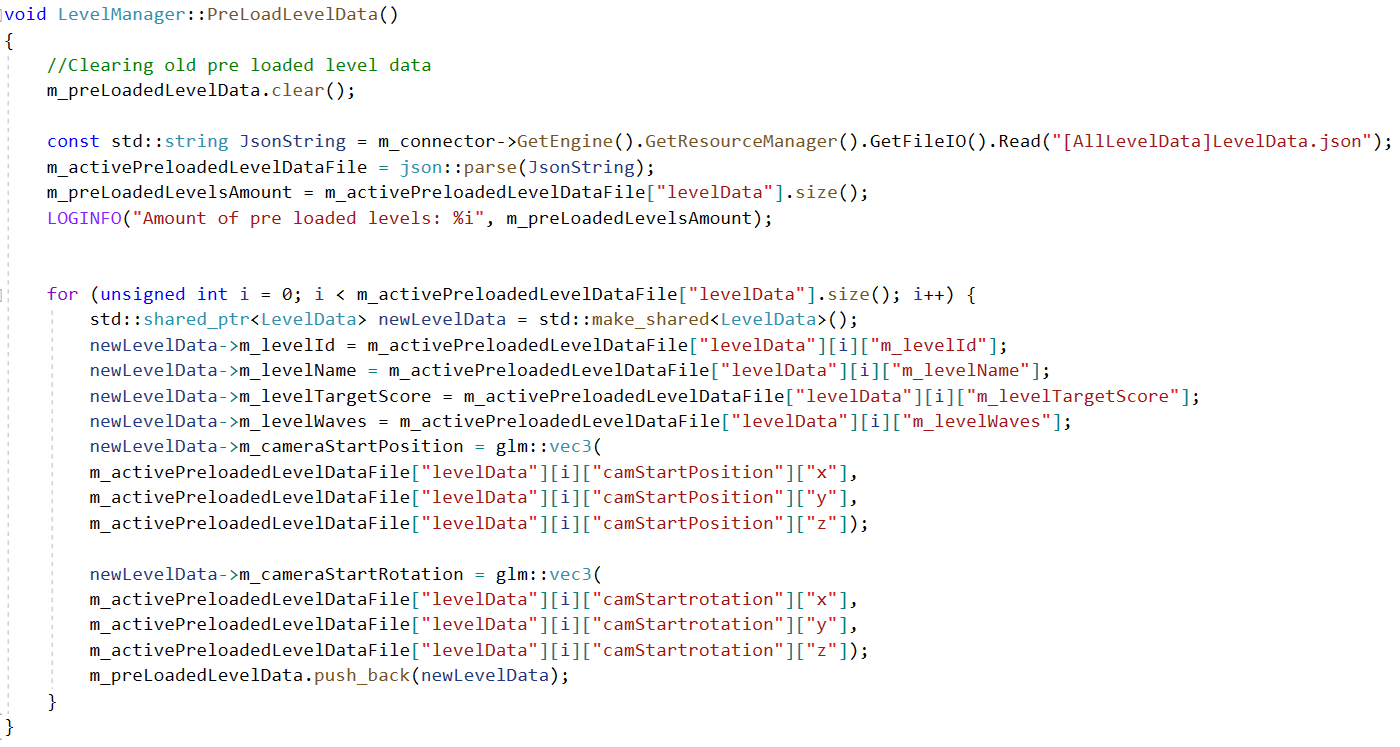

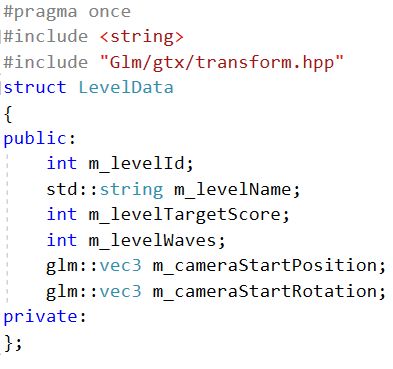

Using a for loop and the levelData array size, I create different LevelData structs and fill in the right variables with the right json data.

Whenever I want to add a new level, I can create a new levelData array element, which holds the right json file name.

---

▚ Parsing the Ogmo json data

---

Whenever a level is loaded from a exported Json level file, the custom made Ogmo parser is used.
Inside the Ogmo parser multiple things are happening.

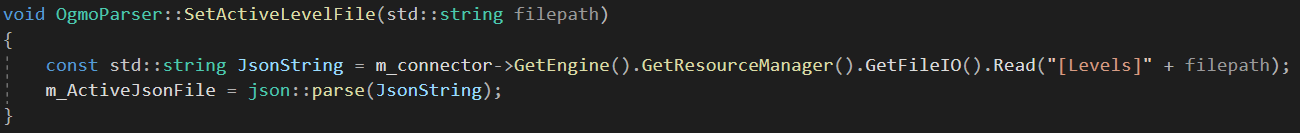

I first set the active level file, The filepath string is received from the specified Level Data struct (shown in previous section).

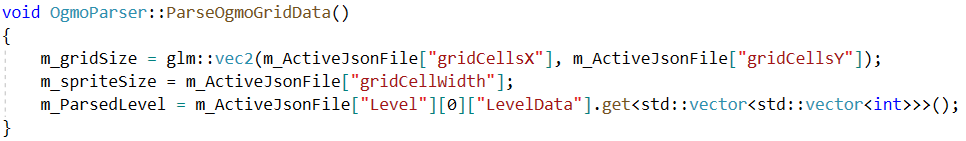

I then use the ParseOgmoGridData function to set the m_gridSize and m_ParsedLevel inside the Ogmoparser class. This is both retrieved from the level Json file.

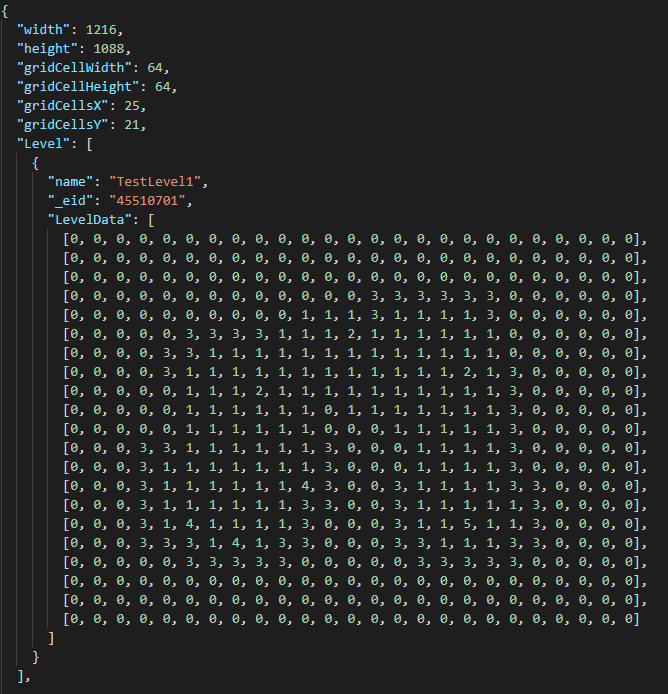

An example of this level Json file is shown below.

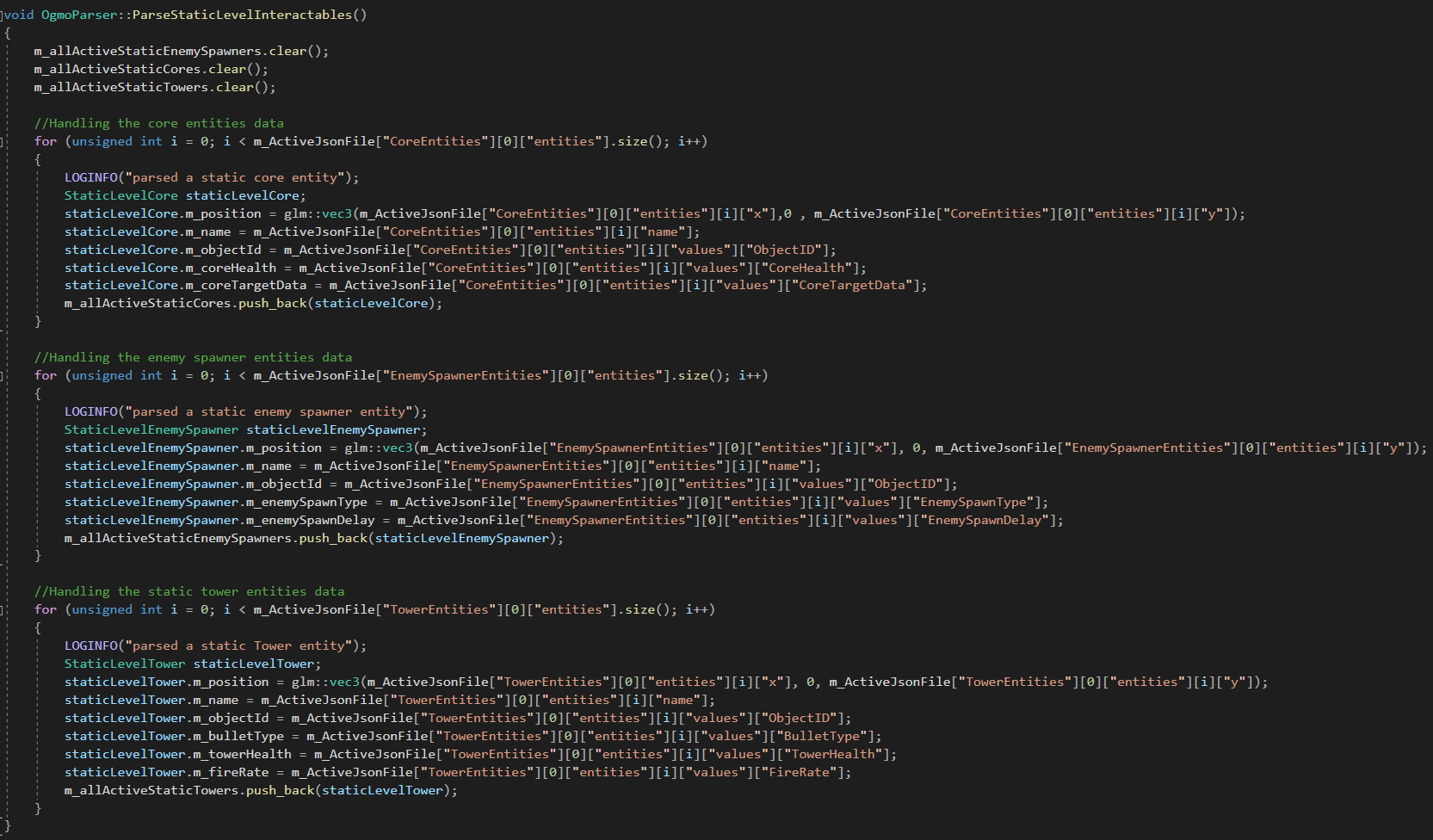

Inside the ParseStaticLevelInteractables function I first clear the static level vectors (inside the Ogmo parser).
I then loop over the different arrays specified inside the Json file.
I create specific "Static object data" structs, where I can store these specific variables defined in the json file.

---

▚ Loading the level data

---

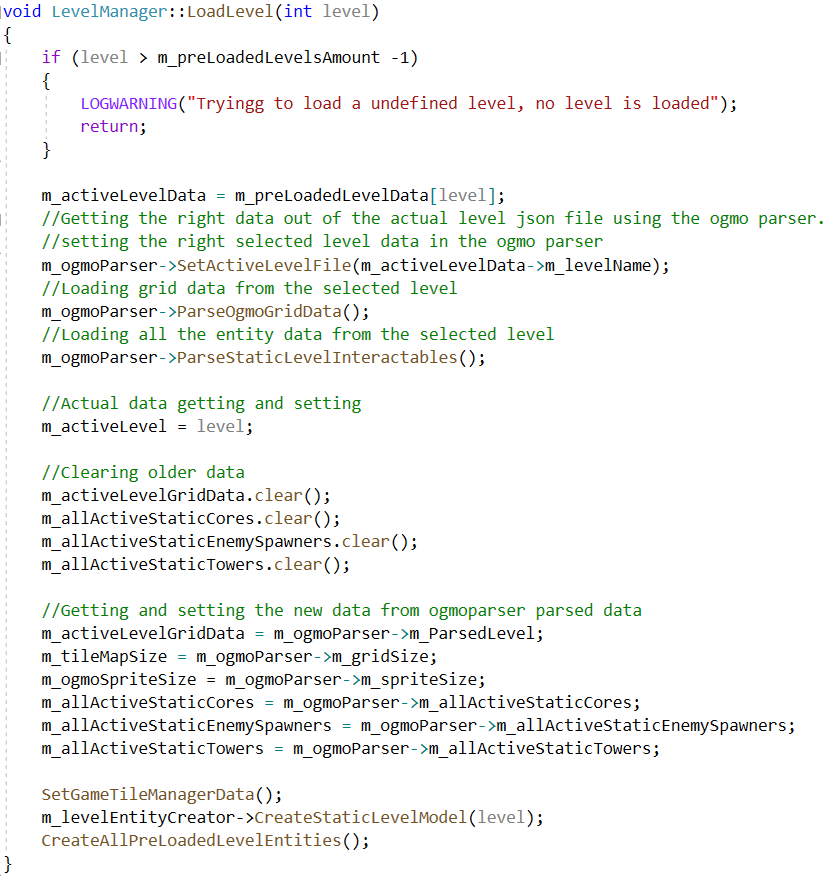

In the LoadLevel function, I first check if the requested level exists. I do this by checking if the int level, is higher the the predefined number of levels defined in the LevelData.json.
Whenever the requested level is valid, I first get the right level data struct and set that to m_activeLevelData.
I then use the m_ogmoParser, set the active level file (json file).

I then call the ParseOgmoGridData function, which reads out the tiles 2d array values.

I then call the ParseStaticLevelInteractables function (shownin the previous section), which parses and saves data structs with specific defined variables.

I clear my possible old data, and copy the data inside the variables inside the LevelManager.
I then use SetGameTileManagerData to preset the size of the tile map in the TileManager.

I call the createStaticLevelModel and CreateAllPreLoadedLevelEntities functions to properly create all the needed entities, with the right data.

---

▚ Tile entities and Level grid generation

---

The tile component struct holds the necessary data, which are used, set or accessed by systems such as the FloodFill, the AStar system and during the main gameplay systems. More about this, and how the data is used accordingly in the sections below.

After Finalizing the Ogmo level parsing, the final level data is correctly parsed and usable to send to towards the tile manager. To actually create all the needed tiles as entities I created a custom function to create all these tiles using the right created data.
I do that using the CreateTileMap function in the tilemanager class.
the createTileMap function uses the grid data, to create the right tiles.
The grid data is used to check for active tiles, buildable tiles and creates the right entities on the right entity id.

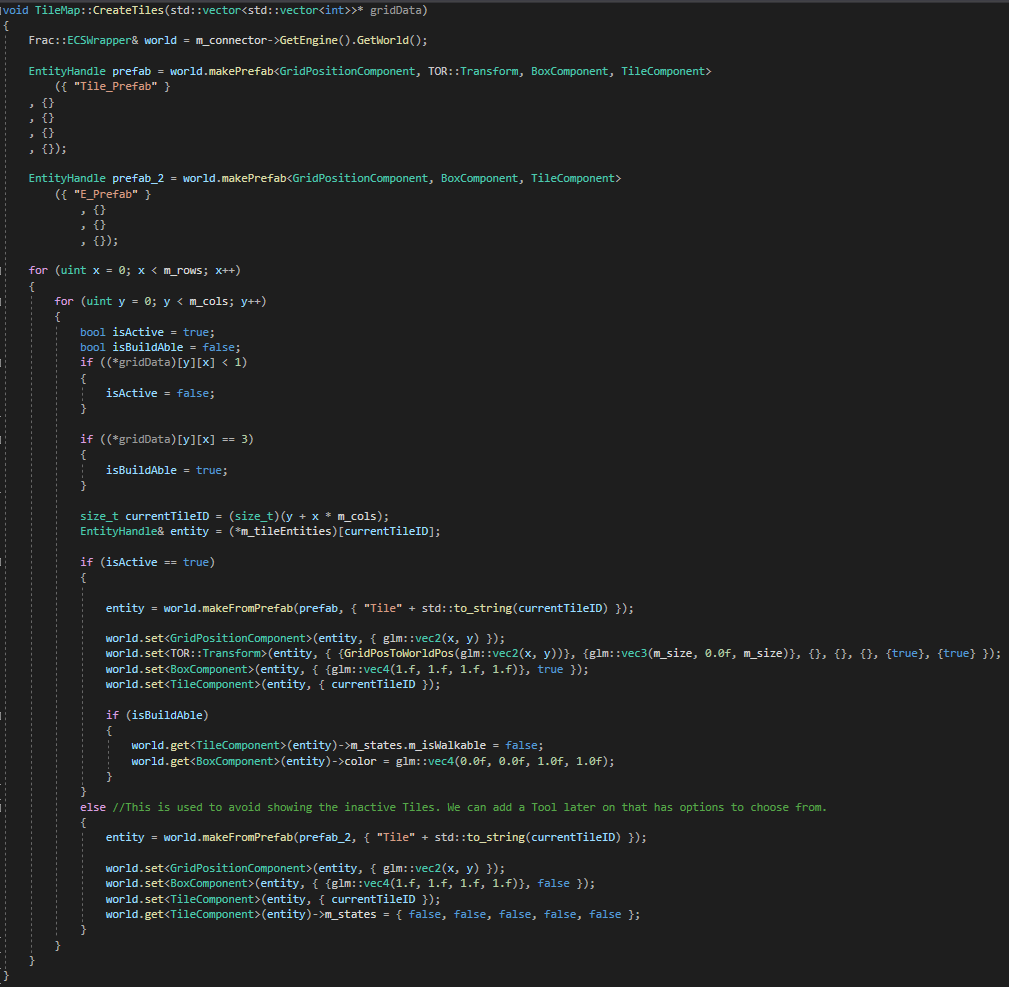

The CreateTiles Function is responsible for the creation of the entities, creating the right components for these entities and using the parsed level data.

After the function is called, the tiles are generated and the whole tile map is working correctly.

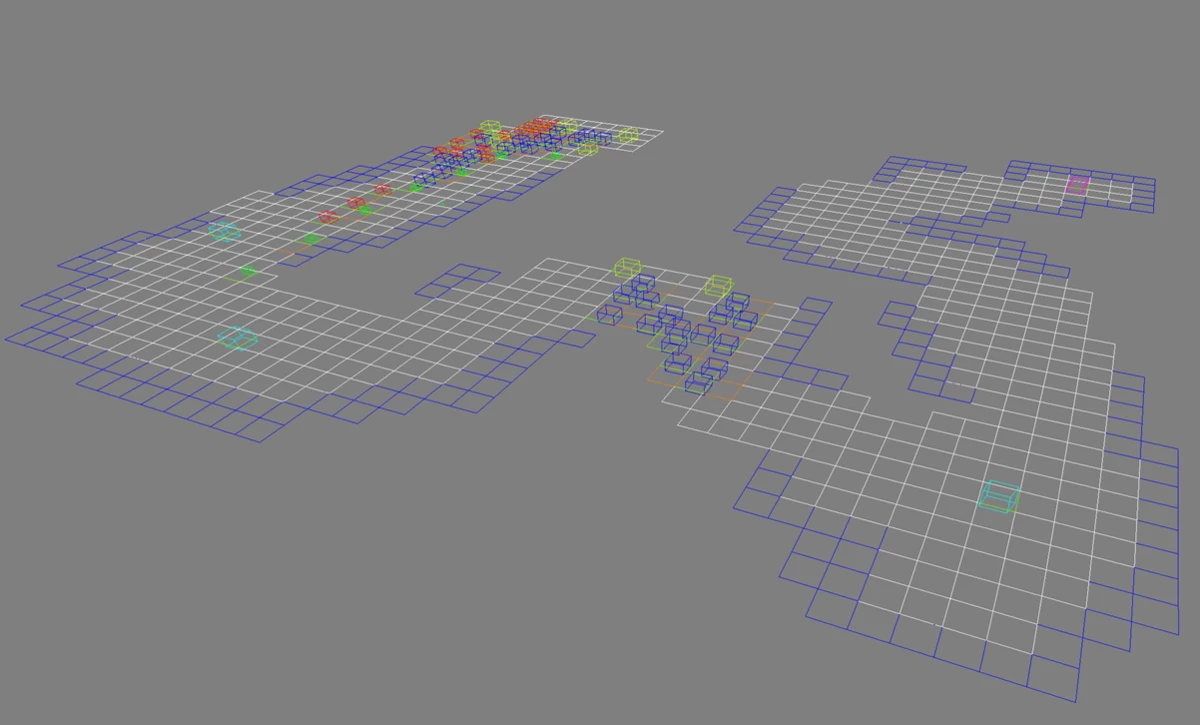

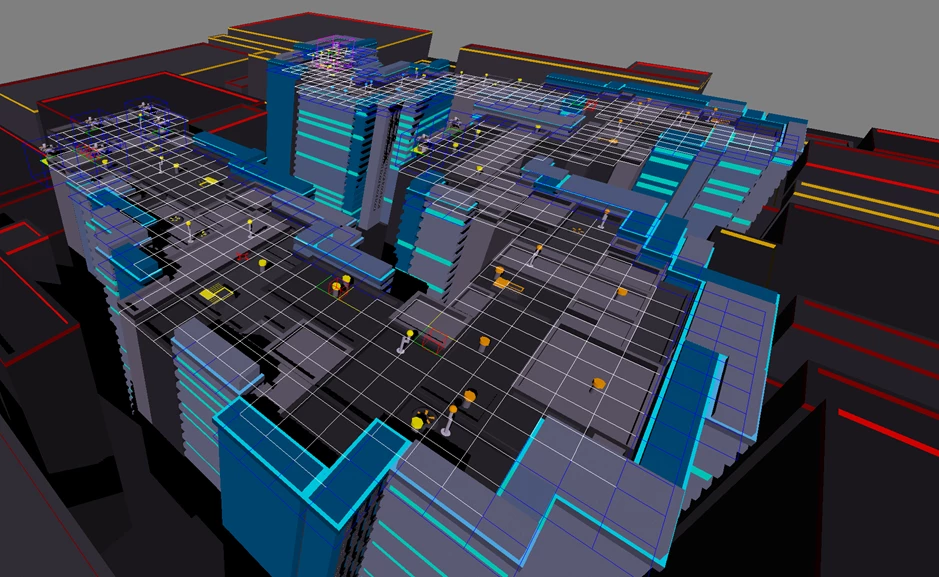

As seen in the images above, the created tile entities are lining up with the loaded level. The data is correctly used, but kept separately from the level mesh. This was intended, to make sure the visual representation of the level is separate from the actual gameplay/level grid system.

---

▚ A* in Data Flow

---

To make our enemies move towards the target, we wanted to test with several pathfinding algorithms. For the first pathfinding algorithm we wanted to test, I implemented the AStar algorithm into our Data Flow project.
All my research done into AStar, helped but I encountered a few challenges.

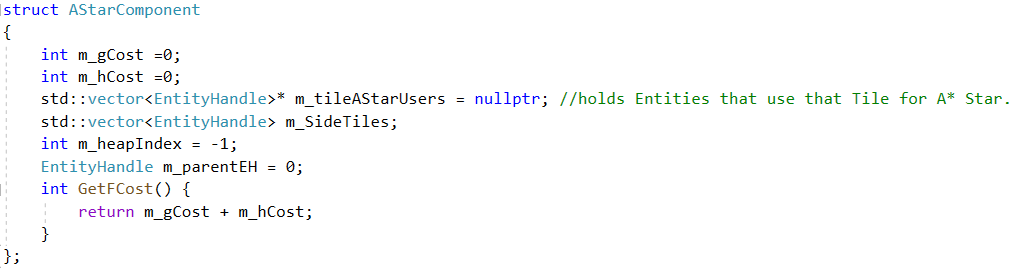

To store the data, I created a AStarComponent. This holds all the important variables, needed to successfully use the algorithm. In here I first learned how different it was, to implement AStar inside a ECS work environment, in comparison to a OOP work environment.

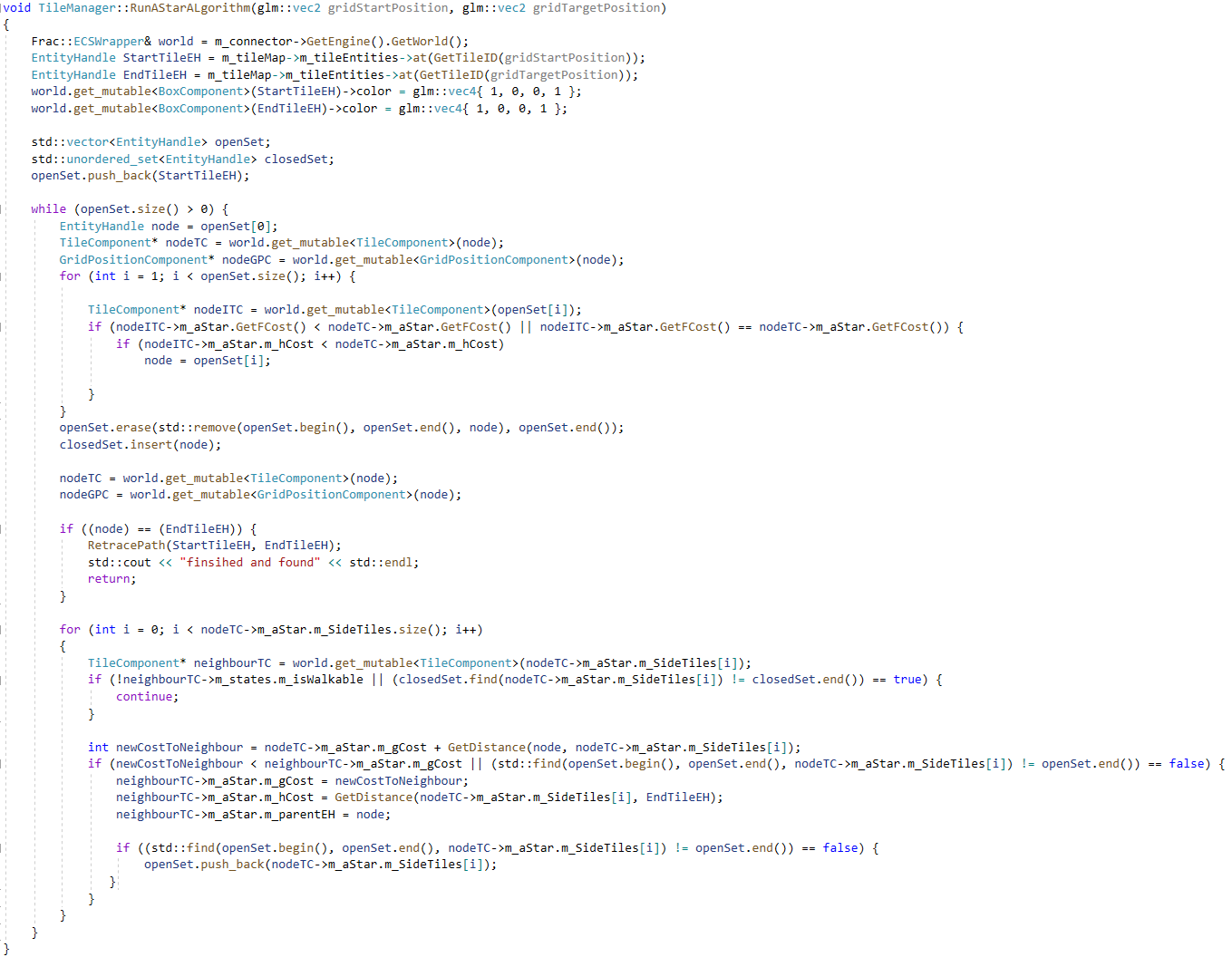

The RunAStarAlgorithm function uses the grid start position and gridTarget position as input data. I kept this explicitly simple, because I wanted this function to be callable for many different reasons/purposes.
I had to rework my previous written AStar algorithm to work with out entity component system, especially handling getting the right components and data was different.

After the function is finished and a path is found, the result of the algorithm is retraced and stored inside the "m_LastRetracedPath". This accessible to be used for many different purposes.

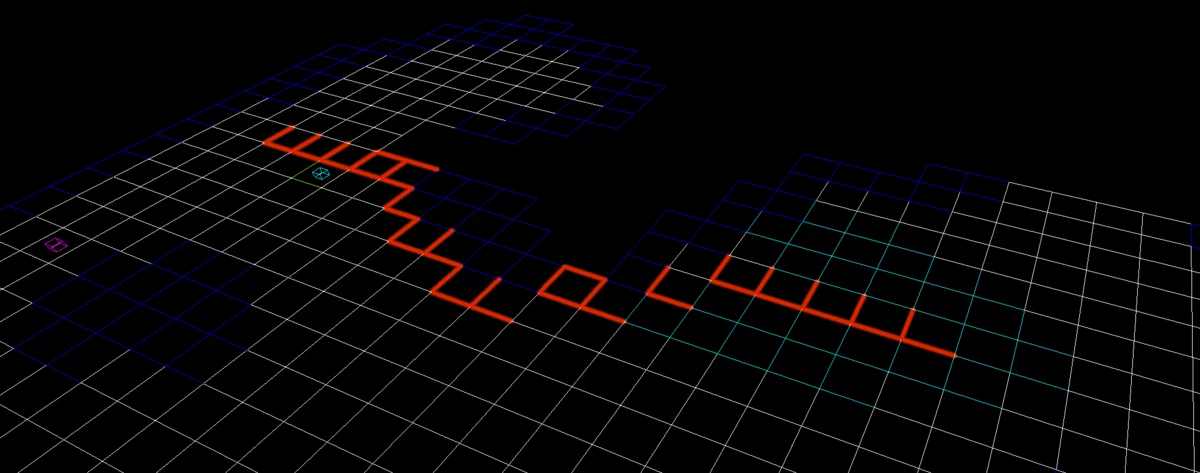

The result of the working AStar algorithm, in our data flow project:

We ended up using the FloodFill algorithm to generate a flow path once, which is more usable with our enemies, which spawn from different locations.

---

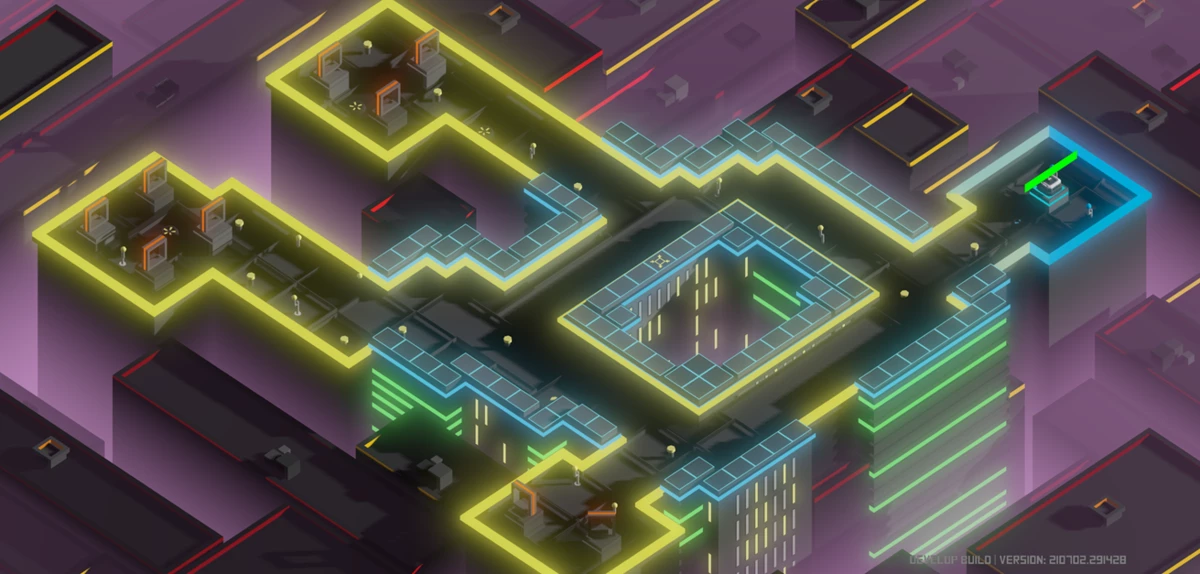

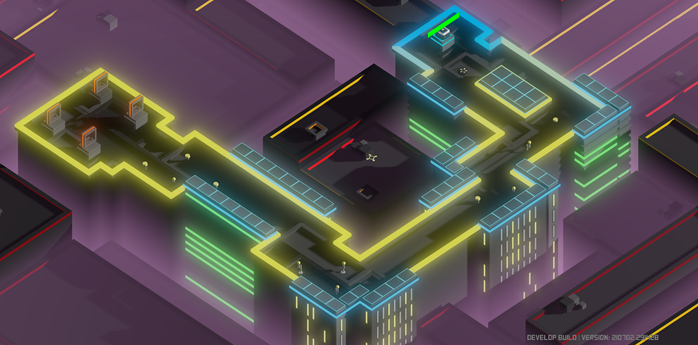

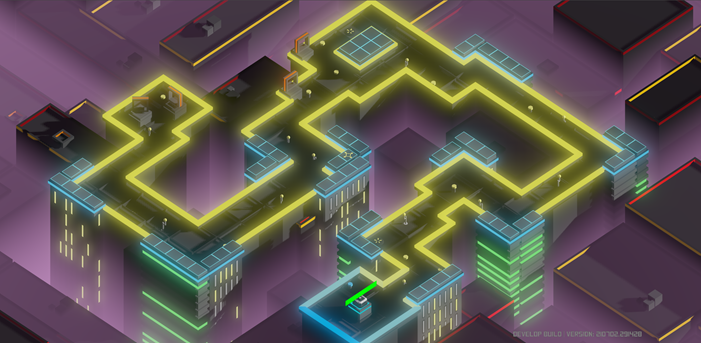

▚ Final level designs

---

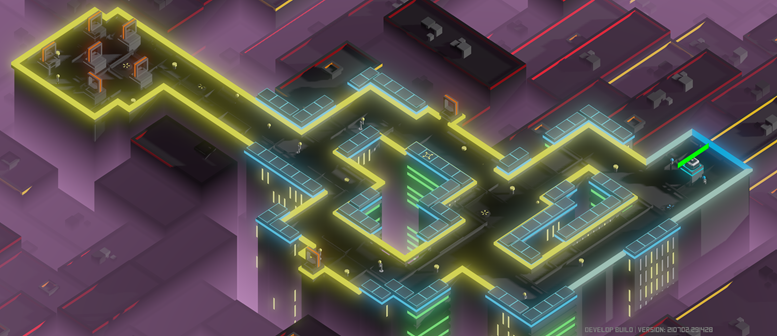

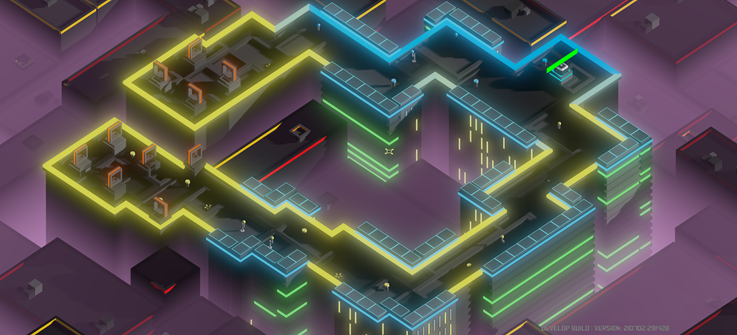

The 5 levels:

Now that the Json files are in place, I was able to test all the levels in engine.
I am really happy with the final results, and the levels actually do feel like they play better then the previous levels.

---
